Canor DAC 2.10

Canor DAC 2.10

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Add to Wishlist
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Add to Wishlist
Shipping & Payment
Customer Reviews
CANOR DAC 2.10 uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.


Main Features

Product features

  • thanks to used converters, it is possible to play files in PCM formats up to a sampling frequency of 768 kHz and for DSD format up to Native DSD512 via the USB input, thus covering most digital files that you can normally play, buy or stream.
  • it uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.
  • the analogue output is a buffer, which is solved by a high-quality electronic connection
  • dual converter wiring uses separate signal paths for the left and right channels.

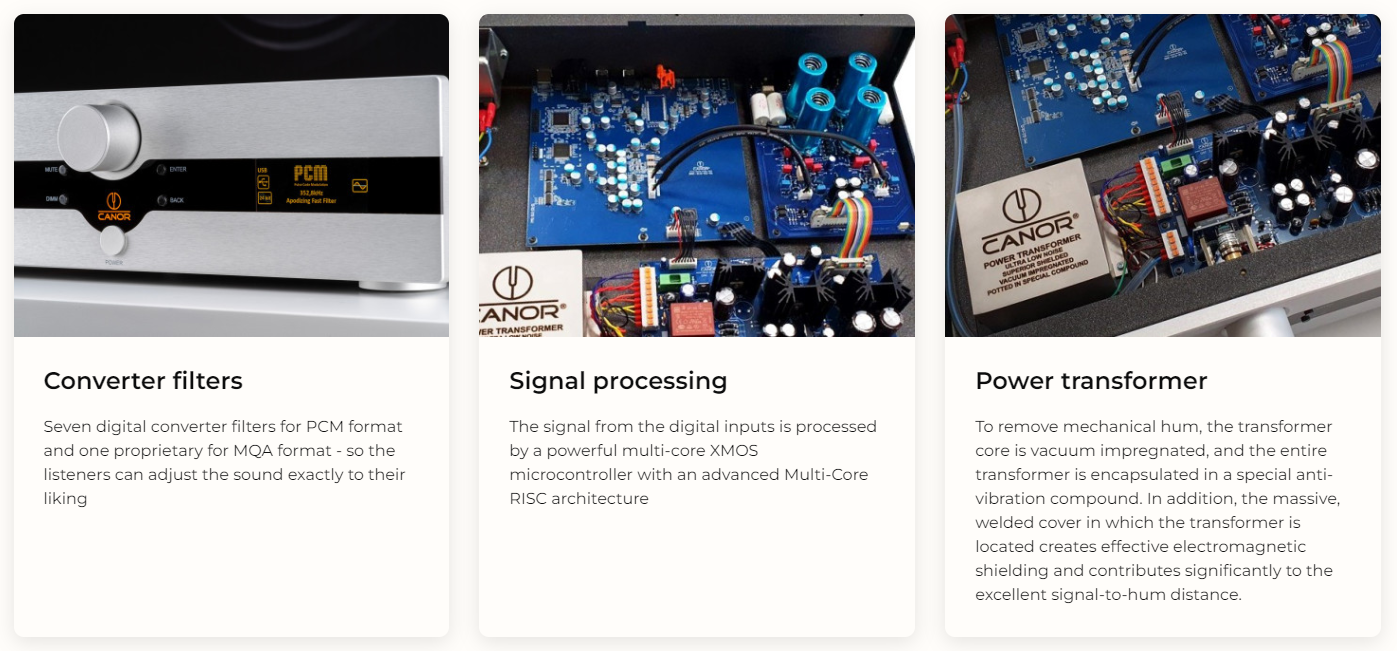

  • there are seven digital converter filters for PCM format and one proprietary for MQA format, which is set automatically during MQA playback.
  • the last (eighth) item in the digital filter menu “Oversampling Bypass” can be selected. But it’s not a digital filter, as it’s turning off digital filtering for the ability to compare audio without filtering…
  • the signal from the digital inputs is processed by a powerful multi-core XMOS microcontroller with an advanced Multi-Core RISC architecture.

Technical specification
Frequency Response at Fs=192 kHz +/- 0,03 dB at 20 Hz to 20 kHz
Output impedance < 200 Ω
THD+N 1kHz at 0 dBFs > 0,008%
THD+N 1kHz at -6 dBFs > 0,004%
XLR output voltage at 0 dBFs 4 V RMS
XLR: SNR 20 Hz to 20 kHz at 0 dBFs < 108 dB
RCA output voltage at 0 dBFs 2 V RMS
RCA: SNR 20 Hz to 20 kHz at 0 dBFs < 95 dB
Analogue outputs 2 x XLR / 2 x RCA
Supported PCM sampling rates 44,1k / 48k / 88,2k / 96k / 176,4k / 192k / 352,8k / 384k / 705,6k / 768kHz
DSD over PCM support DoP DSD 64/128/256/512
DSD Native support Native DSD 64/128/256/512
MQA support Full MQA decoding by hardware from all digital inputs
S/PDIF Optical input 2 x (24bit / 192kHz)
S/PDIF Coaxial input 1 x (24bit / 192kHz)
AES/EBU input 1 x (24bit / 192kHz balanced)
Digital to Analogue converter 2 x ESS9038Q2M (dual mono)
Filter settings 8 x digital filter
Display LCD TFT
Tube complement 4 x 6922
Power 230 V / 50 Hz / 44 VA
Dimensions (w x h x d) 435 x 120 x 405 mm
Weight (net) 12 kg
