CelMusper NS6

USB Audio，Digital Output and Clock Module

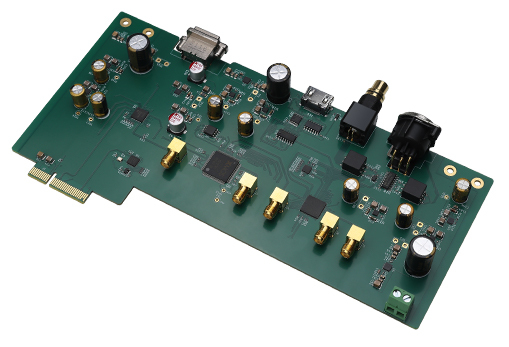

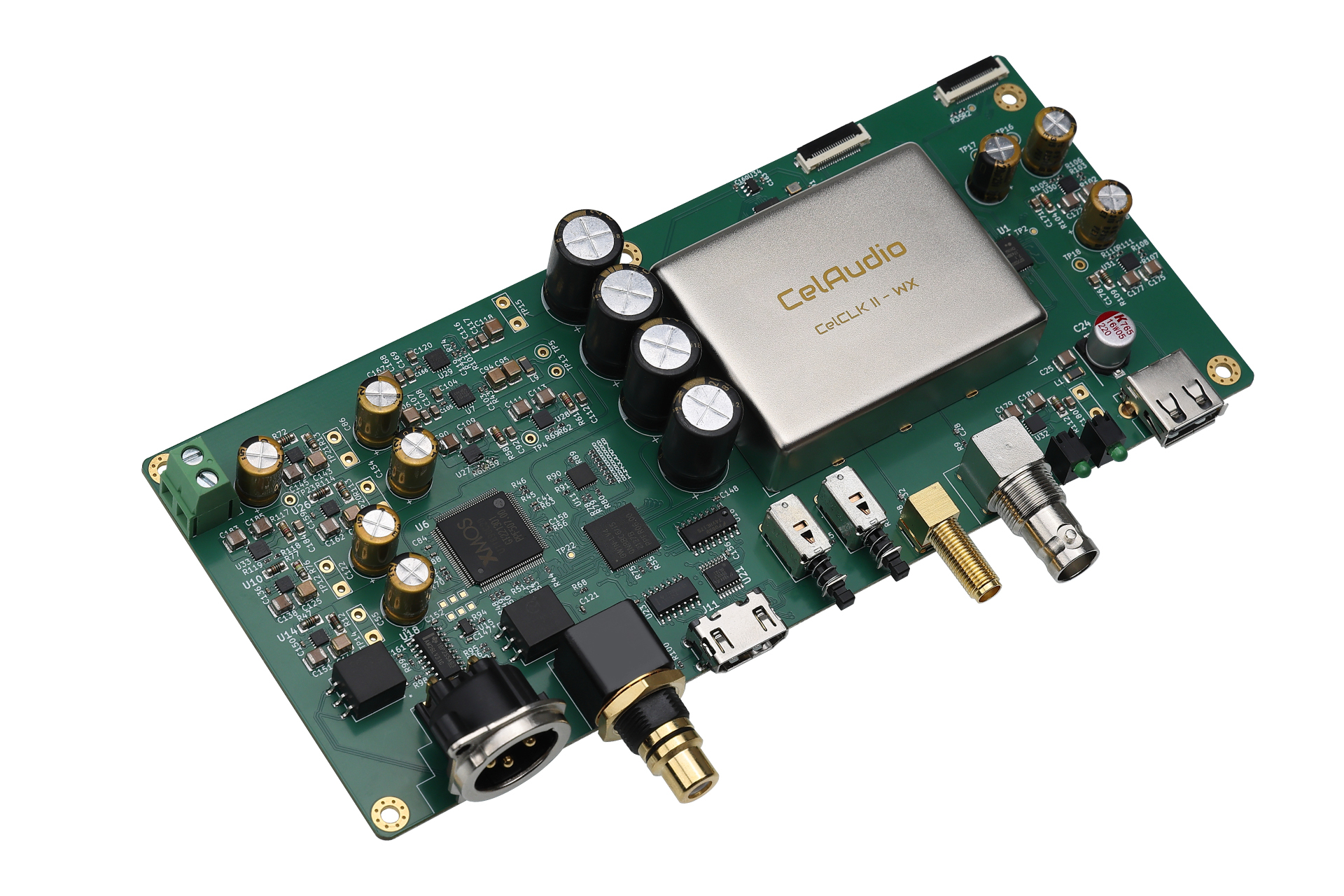

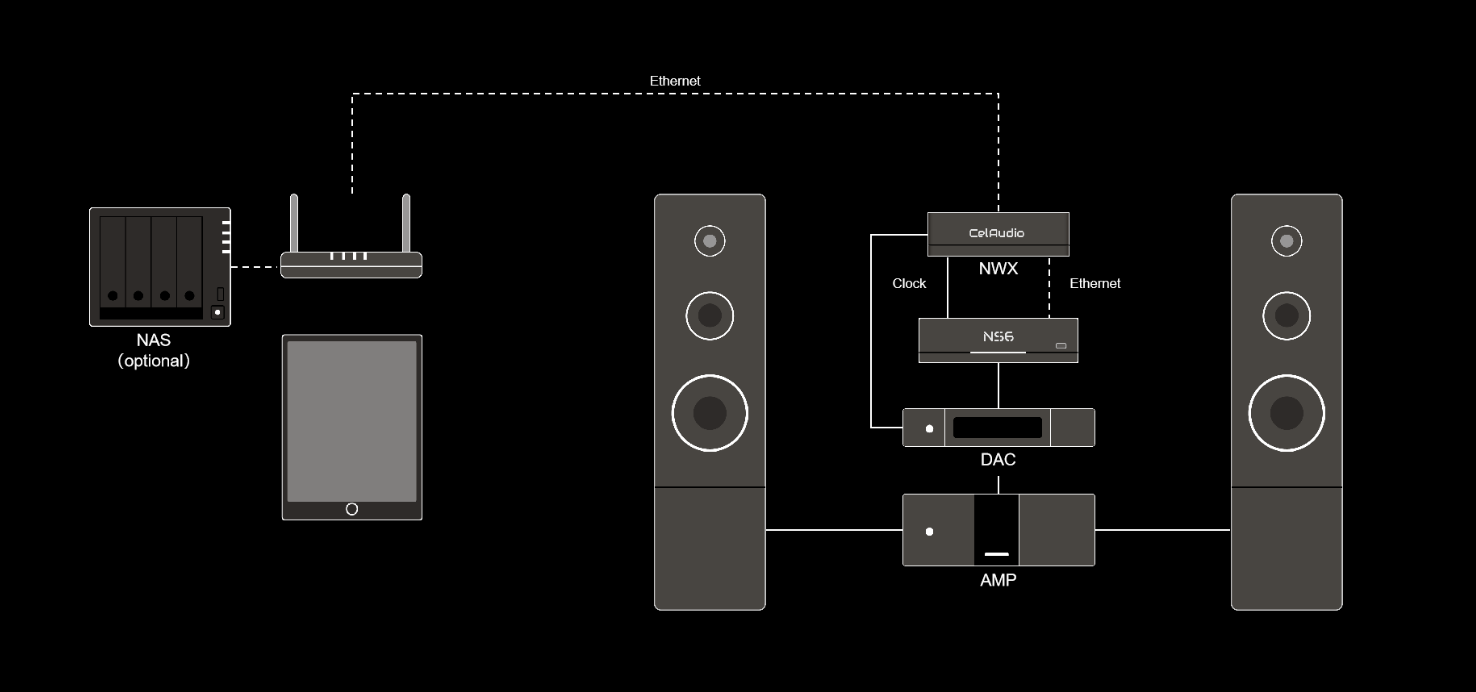

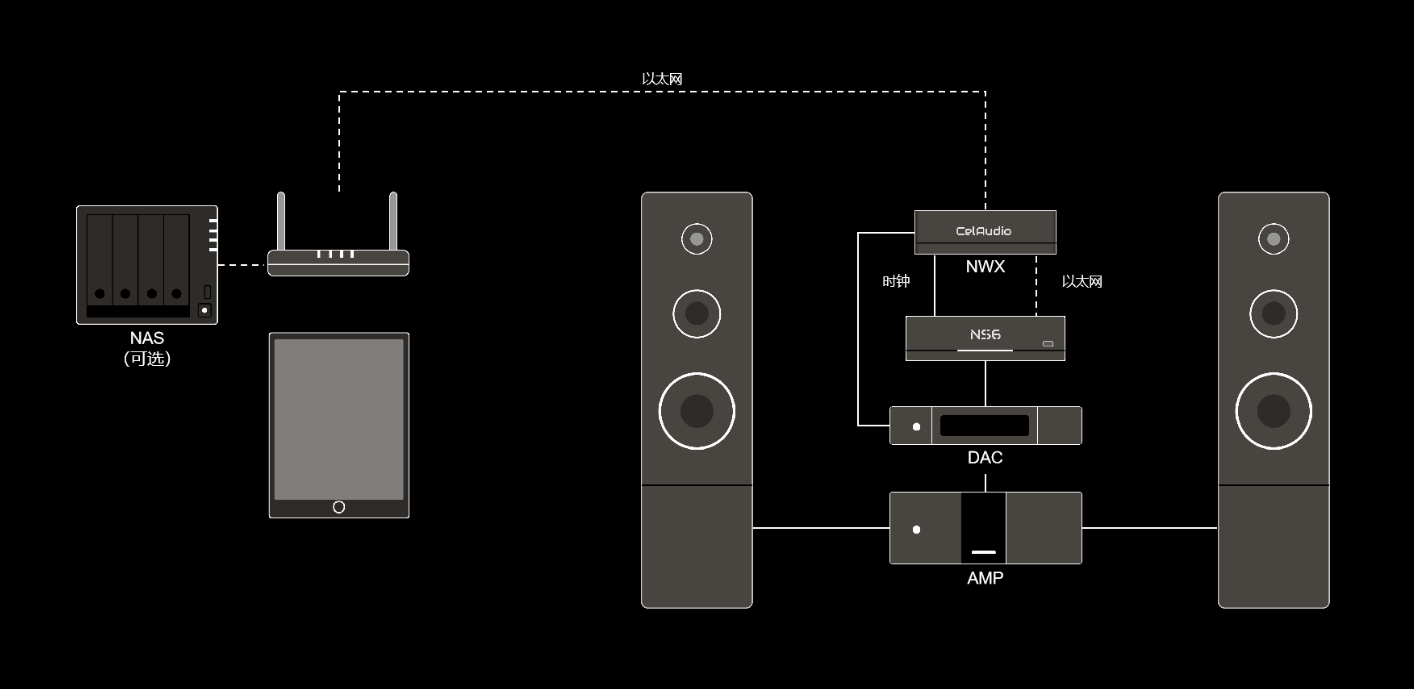

This module provides a USB 2.0 port, an i2s (HDMI) port, an AES port and a SPDIF (RCA) port to connect DAC. It is designd with onboard linear power supply. Additionally, it uses independent PCIE bus of CelHeart-G1 for low latency. All digital signals use FIFO and RECLOCK technology. At the same time, this module have the CelCLK II PLL system, with an on-board 50MHz OCXO (-85dB@1Hz, 1e-11@1s) as the VCO clock source, a BNC and a SMA 10MHz input. This module is a mandatory module for NS6U.

• Specification

  USB Output	USB Audio * 1
  Digital Output	i2s(HDMI) * 1，AES * 1，SPDIF(RCA) * 1，NS6U only
  Clock Input	BNC * 1(0.6V RMS，Sine Wave/Square Wave)，SMA * 1(3.3V RMS, LVCMOS Square Wave)
  Network	10/100/1000Mbps RJ45 * 1，support the software to set the rate and duplex mode
  Built-in Disk	NVME 1TB，user available space is approximately 870GB
  External Disk	2.5-inch SATA * 2，thickness≤7mm
  Power Input	110/220V AC，fuse 5*20mm，2.5A slow-blow
  Size（W*D*H）	370mm * 210mm * 120mm
  Weight	11Kg



  • Product Model

  Model	Model Description
  NS6	Provide a 10/100/1000M auto-adaptiv Ethernet Port and USB Port.
  NS6U	Provide a clock input interface, 10/100/1000M Ethernet Port, USB Audio interface, i2s/SPDIF/AES interface.
