Celaudio CelMusper NSX

NSX achieve high-precision, global clock synchronization by using the CelCLK II PLL system.

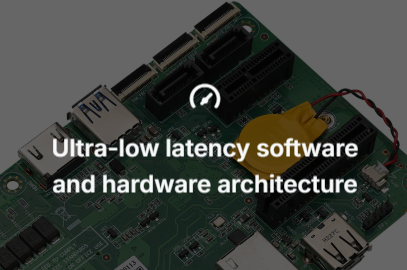

NSX designed for ultra low latency. Ultra low latency is one of the key to improve sound quaility.

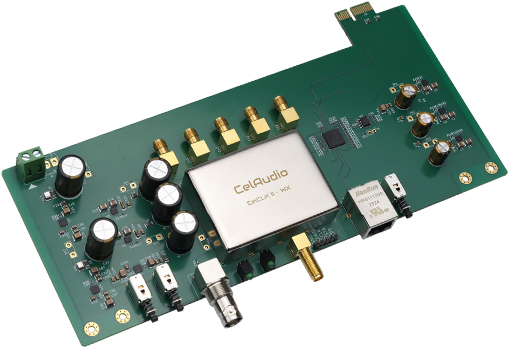

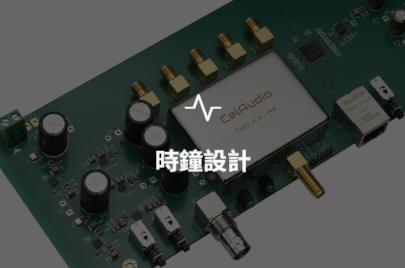

Network & Clock Module

The network clock module provides a 10/100/1000M RJ45 port, and the operating rate of this port can be set through software. At the same time, this module provides the CelCLK II PLL system, with an on-board 50MHz OCXO (-85dB@1Hz, 1e-11@1s) as the VCO clock source. a BNC and a SMA 10MHz input. This module is a mandatory module for NSX/NSXD.

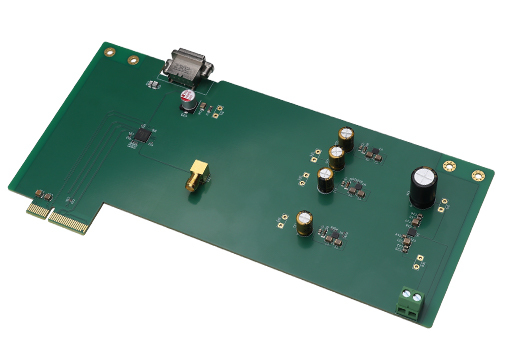

USB Audio Output Module

This module provide a USB 2.0 port to connect DAC. It use independent PCIE bus of CelHeart-G1 for low latency. The clock comes from network & clock module. Fully onboard linear power supply. This optional module is for NSX.

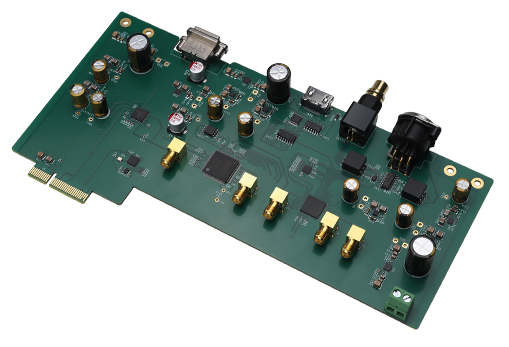

USB Audio and Digital Output Module

This module provides a USB 2.0 port, an i2s (HDMI) port, an AES port and a SPDIF (RCA) port to connect DAC. It is designd with onboard linear power supply. Additionally, it uses independent PCIE bus of CelHeart-G1 for low latency. All digital signals use FIFO and RECLOCK technology. This optional module is for NSXD.

• Specification

  USB Output	USB Audio * 1
  Digital Output	i2s(HDMI) * 1，AES * 1，SPDIF(RCA) * 1，NSXD only
  Clock Input	BNC * 1(0.6V RMS，Sine Wave/Square Wave)，SMA * 1(3.3V RMS, LVCMOS Square Wave)
  Network	10/100/1000Mbps RJ45 * 1，support the software to set the rate and duplex mode
  Built-in Disk	NVME 1TB，user available space is approximately 870GB
  External Disk	2.5-inch SATA * 2，thickness≤7mm
  Power Input	110/220V AC，fuse 5*20mm，2.5A slow-blow
  Size(W*D*H)	440mm * 410mm * 150mm
  Weight	20Kg

  • Product Model

  Model	Model Description
  NSX	Provide a clock input interface, 10/100/1000M Ethernet Port and USB Audio interface.
  NSXD	Provide a clock input interface, 10/100/1000M Ethernet Port, USB Audio interface, i2s/SPDIF/AES interface.
