Celaudio NW330 HiFi Switch

The NW330 HiFi switch internally has three switches. Different switches provide different sound characteristics, and different topologies have different acoustic impressions.

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}

Quantity

Add to Wishlist

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

Description

Shipping & Payment

Customer Reviews

Description

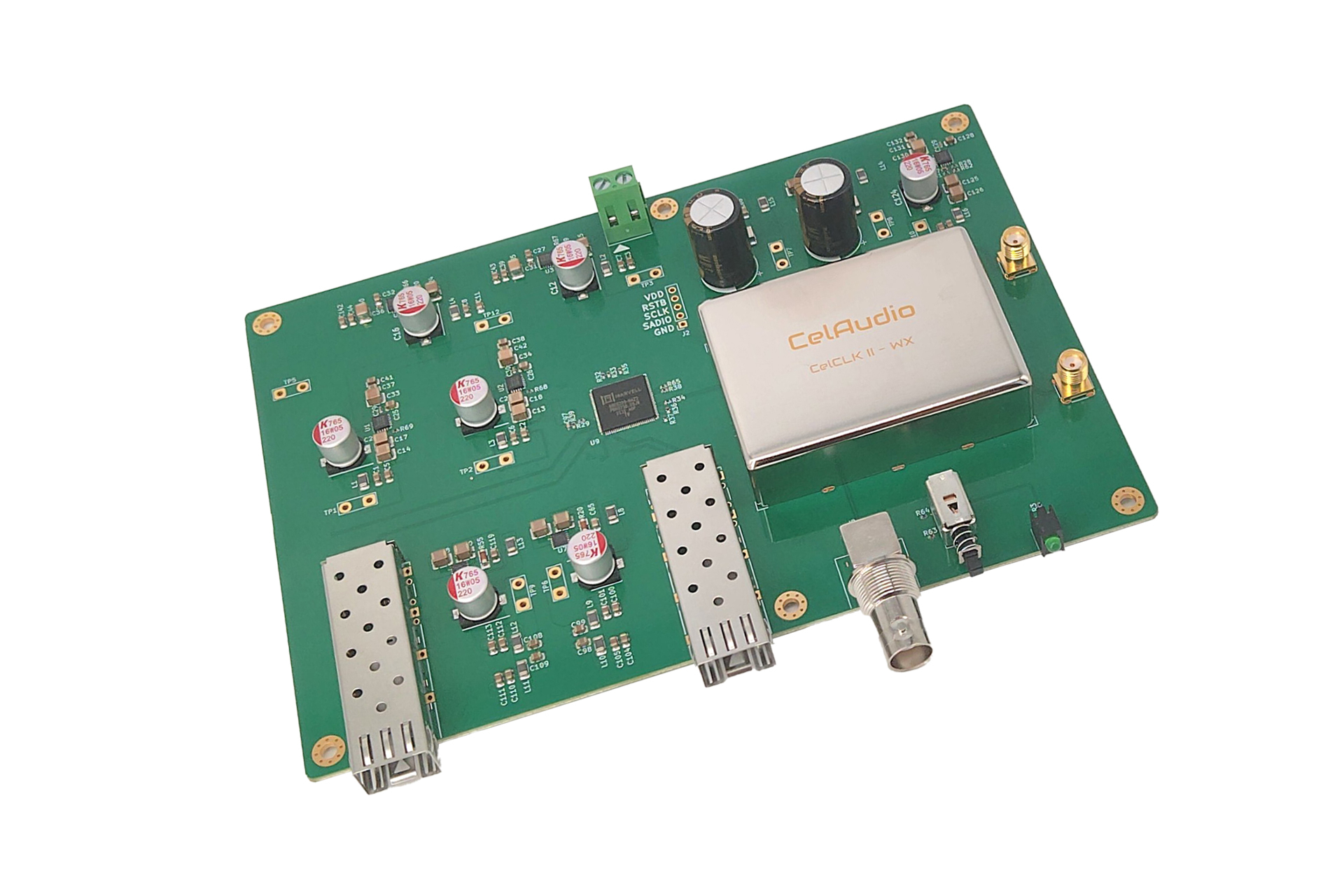

Network & Clock Module

The network & clock module provides two SFP ports, which work in 1000Base-X or SGMII mode, 1000Mbps Only. This module uses a -95dB@1Hz and 1e-11@1s 10MHz OCXO as the reference clock, along with a BNC port for 10MHz input.

The network clock module uses Marvell SOHO switch chips and KEMET Hybrid Polymer V-Chip Capacitors. The sound characteristics are large dynamics and high resolution.

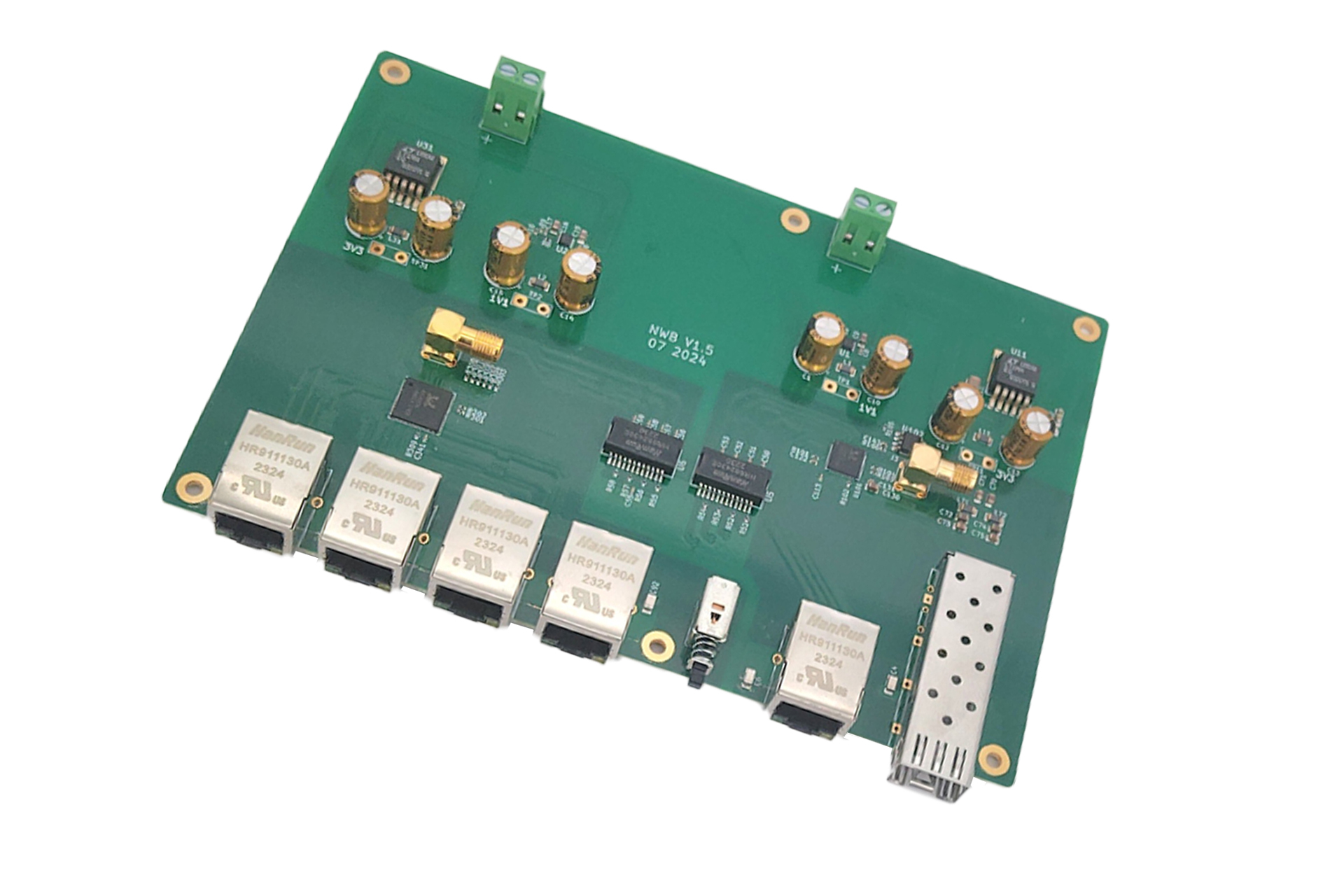

Network Module

This module is built with two independent switch chips, which are connected with network transformers to isolate the noise. One of the switches provides 4 10/100/1000M RJ45 ports, while the other provides 10/100/1000M RJ45 port and 1 SFP interface. The SFP port supports 1000Base-X only.

The network module uses Realtek chip and audio class capacitors. This module is designed for melodious timbre.

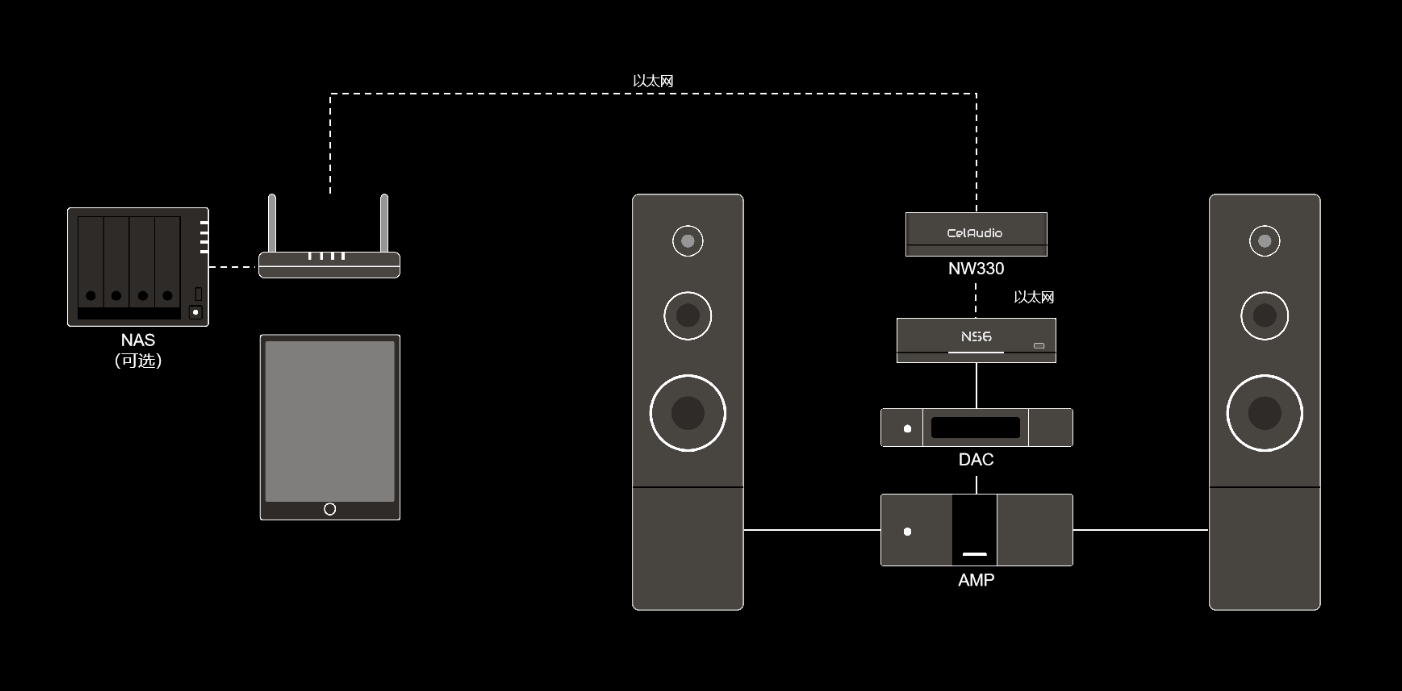

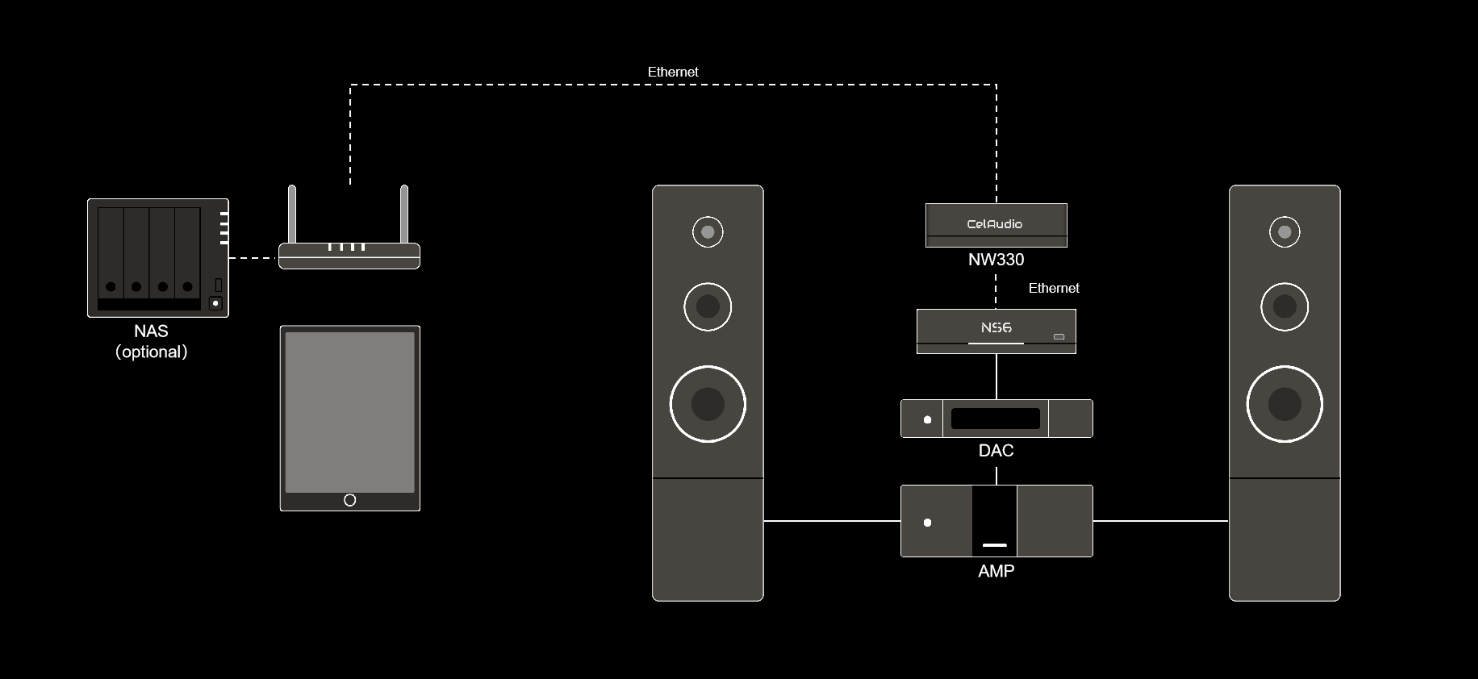

different topology has different acoustic impression: NNW330 has obvious differences in sound characteristics under different topologies. It is recommended to try the different user cases to find the best topology. Please refer to the user guide for details.

Specification

Clock Input	BNC * 1, 10MHz， 0.6V RMS，Sine Wave/Square Wave
Network	Lower-layer switch card，RJ45 * 5, 10/100/1000M auto-adaptive，SFP * 1，only support 1000Base-X
	Upper-layer switch card，SFP * 2，support 1000M 1000Base-X / SGMII
Power Input	110/220V AC，fuse 5*20mm，2.5A slow-blow
Size（WDH）	330mm * 231mm * 110mm
Weight	8.8Kg
