CelMusper NWX

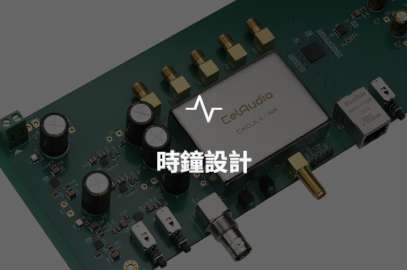

Dual OCXO Clock Module

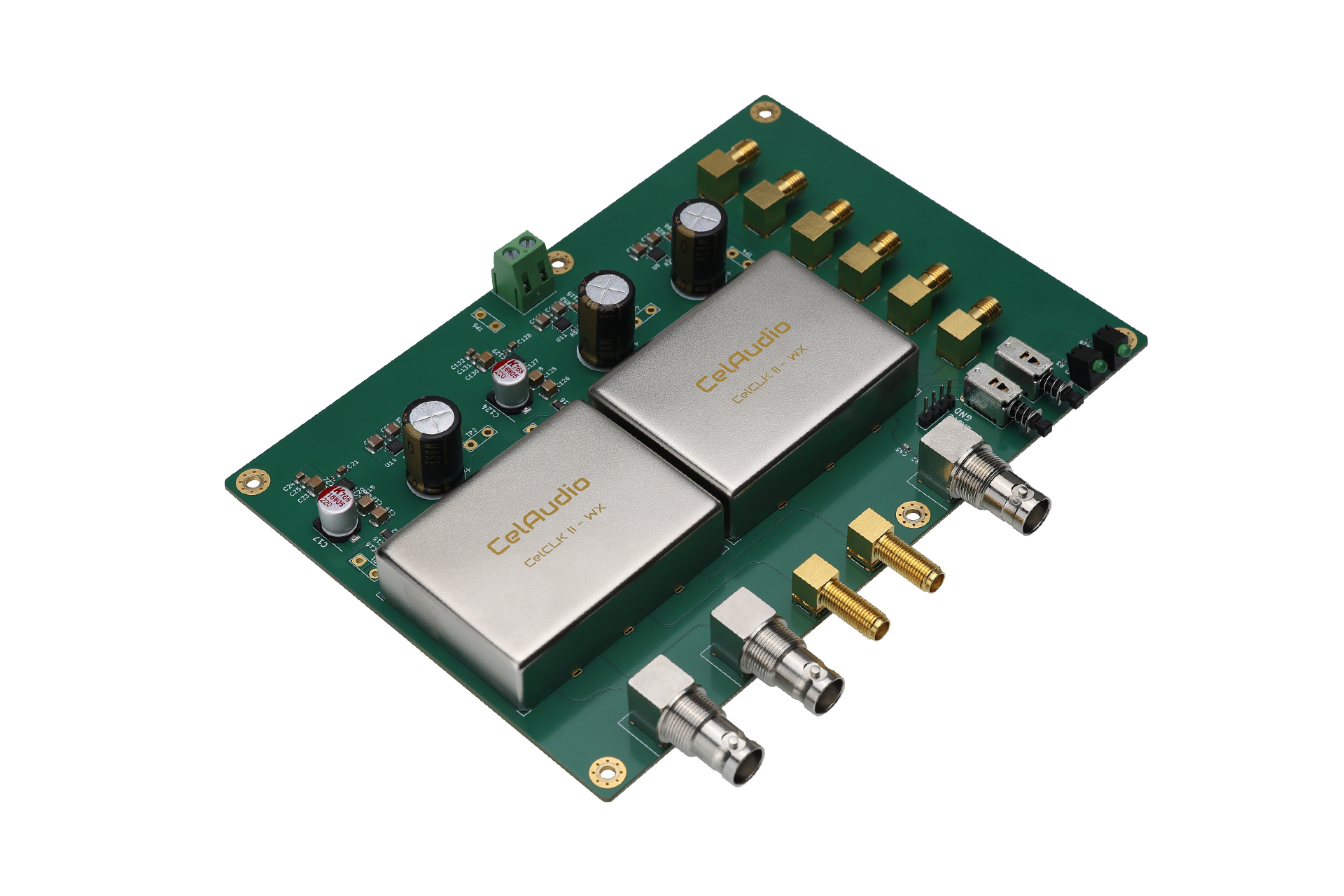

The clock module of the NWX uses a -120dB@1Hz and 8e-13@1s 10MHz OCXO as the reference clock and a -85dB@1Hz and 1e-11@1s 50MHz OCXO as the VCO separately. The VCO clock and the 10MHz reference clock play a role of 1 + 1 > 2, making the entire machine achieve extremely high clock accuracy whether it is supplying the 10MHz clock signal externally and 25MHz clock signal internally.

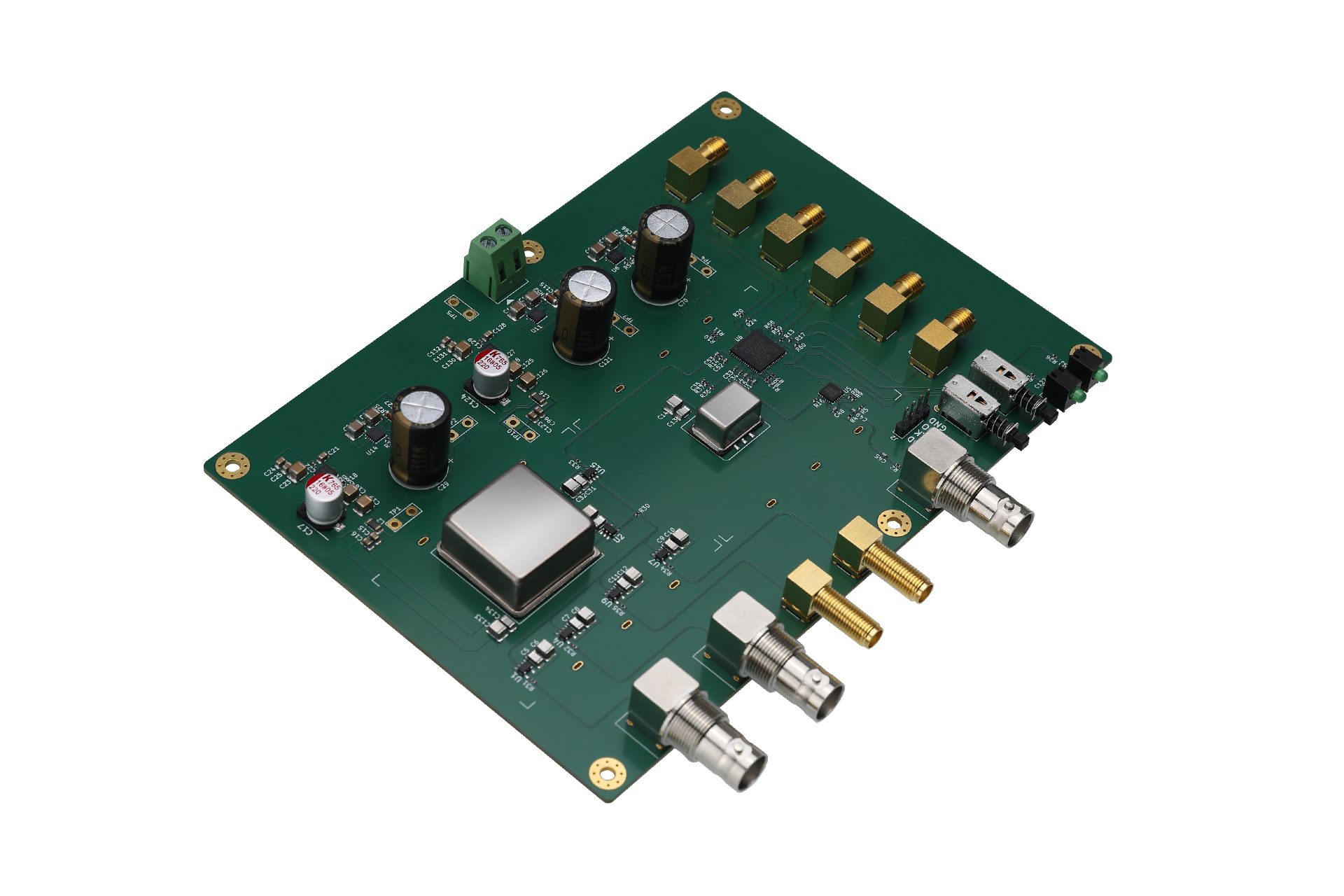

* Inside NWX, there is only one clock module. The pictures are only use to show dual OCXO clock.

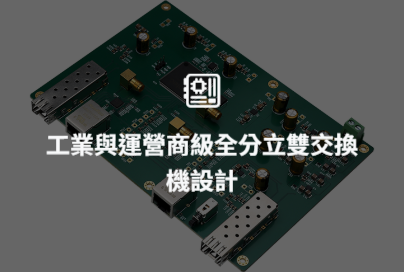

Switch Module

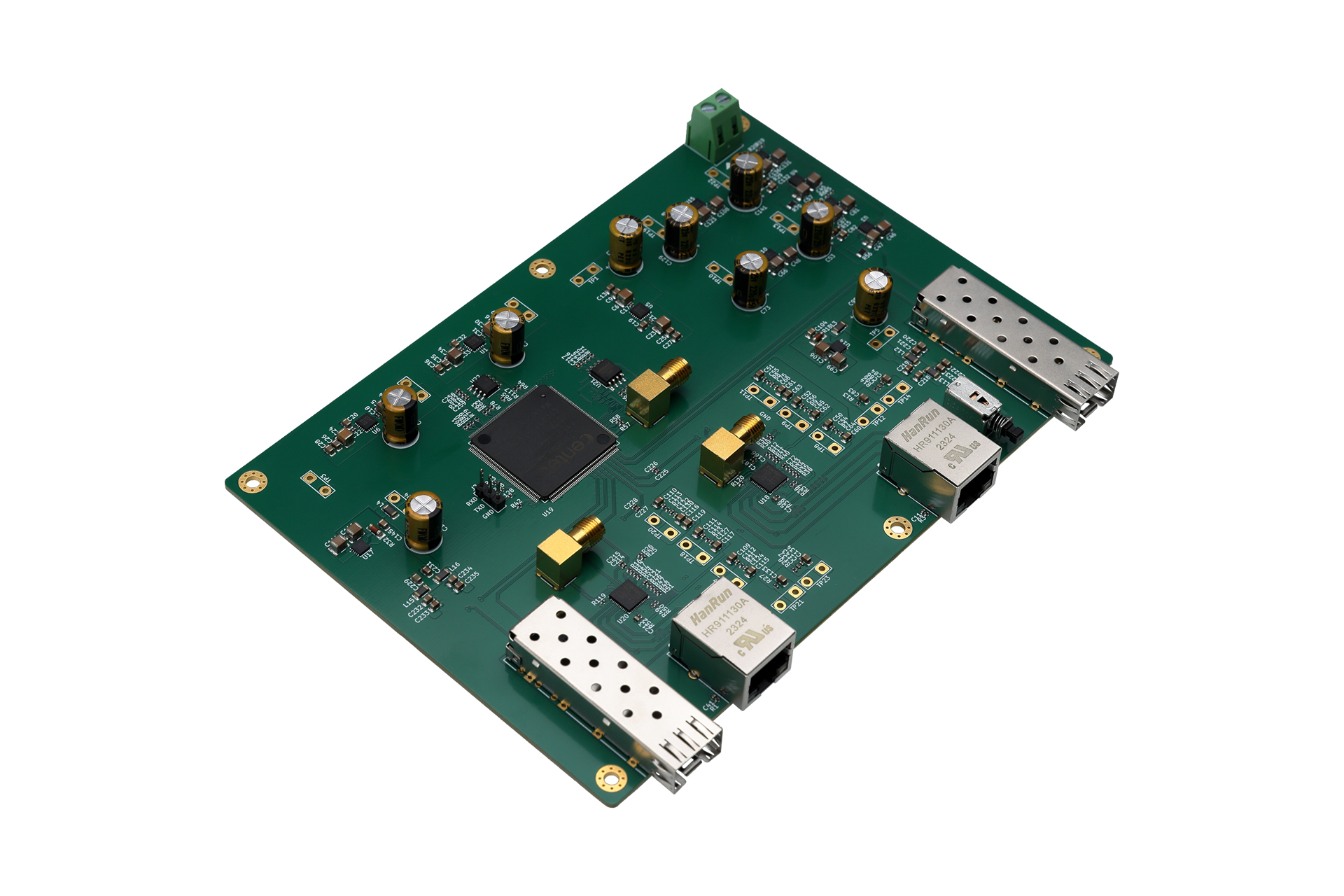

NWX internally has two same switchs. By using the industrial and operator grade switch chipset, NWX was designed as a fully independent port switch. Each SFP port has independnt linear power supply. Each RJ45 port is designed with a independent PHY chip, independent linear power supply and independent clock. This minimize NWX's noise floor and maximize the clock impact.

• Specification

  Clock Output	BNC * 2, SMA * 2, 3.3V LVCMOS Square Wave
  Clock Input	BNC * 1, 10MHz， 0.6V RMS，Sine Wave/Square Wave

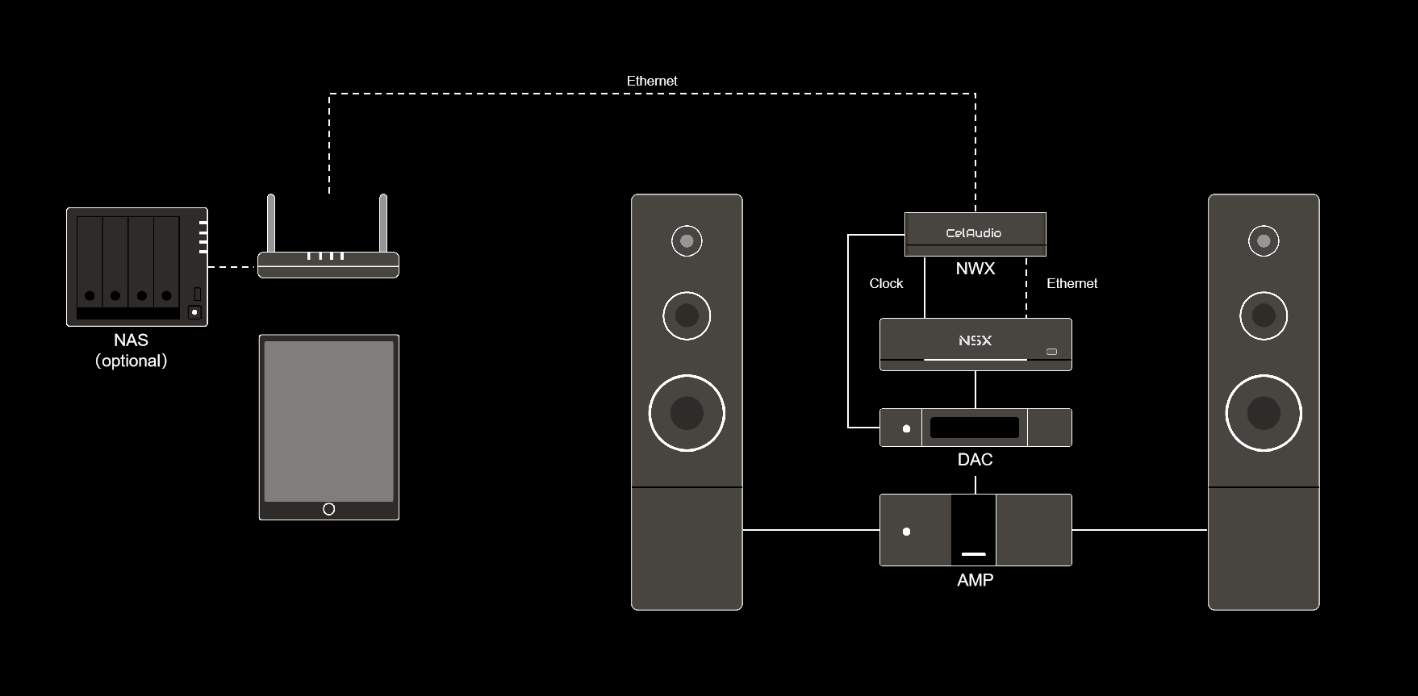

  Network	two switch cards，RJ45 * 2/card, 10/100/1000M auto-adaptive
  	SFP * 2，support 1000M 1000Base-X / SGMII

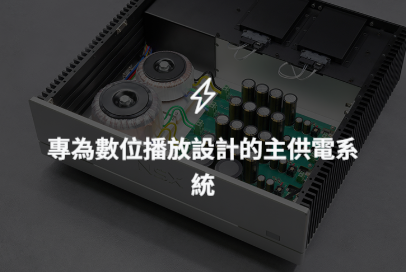

  Power Input	110/220V AC，fuse 5*20mm，2.5A slow-blow
  Size(W*D*H)	330mm * 231mm * 120mm
  Weight	9Kg
